钟庆国

中共党员

潍坊市人大代表

山东亿阳电工有限公司董事长

钟董事长兼任山东省爆破器材行业协会理事长、昌乐县青年企业家协会副会长，2023 年荣获山东省劳动模范。长期践行民企社会责任，扎根地方制造业发展，积极搭建行业交流平台，主动吸纳本地青年就业，助力县域实体经济提质升级，热心参与地方公益帮扶、产业扶持等工作，全力助力全省个体私营经济高质量发展。

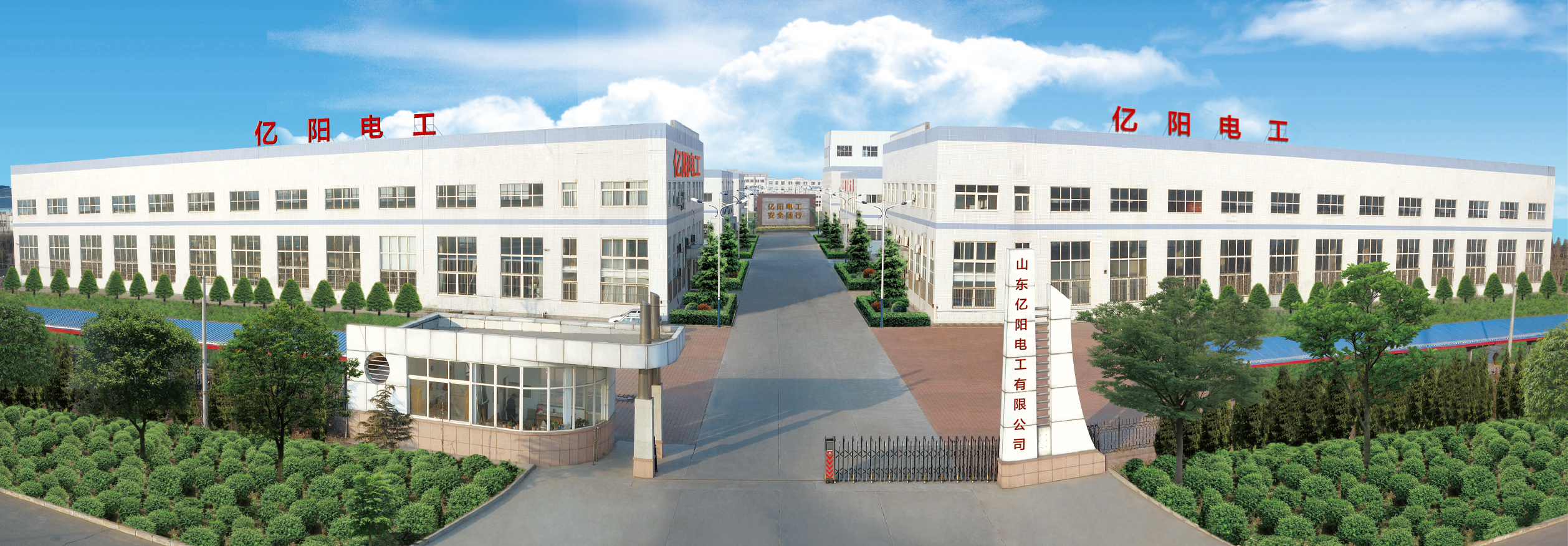

企业介绍

山东亿阳电工有限公司是一家深耕输变电设备制造领域的专业化高新技术企业，坚持实业生产与科技创新双向融合发展，集电力装备研发、生产、服务于一体，是山东本土电力装备制造领域的骨干企业。
研发与产品实力

公司核心业务聚焦 35kV 及以下高低压成套设备、变压器、箱变等电力装备的研发制造，配套搭建专业研发实验室，持续深耕技术攻关与产品迭代。截至目前，企业累计拥有 16 项国家实用新型专利，先后落地潍坊市、山东省多项技术创新专项，以自主研发能力驱动产品品质与行业技术升级。

资质与产能规模

依托规范的经营管理与扎实的技术积淀，公司先后获评高新技术企业、山东省专精特新中小企业、山东省守合同重信用企业，自有商标获评山东省著名商标。目前企业已建成成熟的规模化生产体系，具备年产数千台套电力设备的生产能力，可稳定为市场提供可靠的电力装备解决方案。

行业担当与社会责任

公司深度参与行业生态建设，主动搭建行业交流平台，全力助力全省个体私营经济高质量发展。企业负责人兼任山东省爆破器材行业协会理事长、昌乐县青年企业家协会副会长，持续推动行业协同发展与青年创业创新。作为扎根地方的民营企业，公司始终践行民企社会责任，深耕县域实体经济，主动吸纳本地青年就业，热心参与公益帮扶、产业扶持等工作，持续为地方制造业提质升级、实体经济高质量发展贡献力量。

产品简介

变压器系列

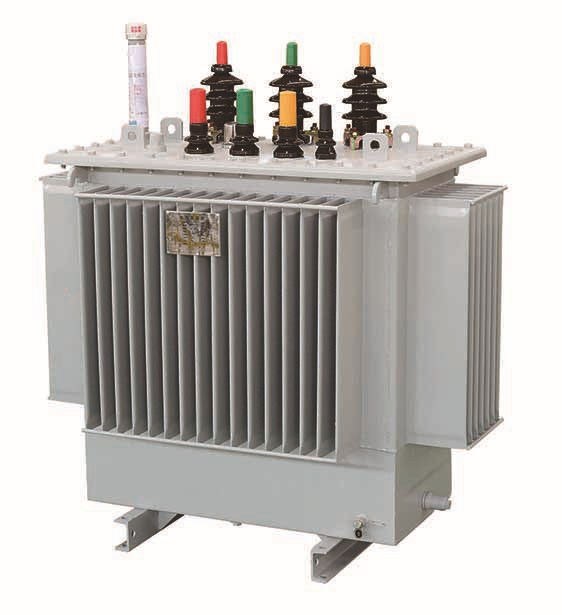

三相油浸式配电变压器

Three-phase Oil-immersed  Transformer
工艺升级抗短路，全密封低损耗免维护，高效节能耐用型三相油浸式变压器

Upgraded anti-short-circuit structure, fully sealed & low-loss, maintenance-free energy-saving three-phase oil-immersed transformer

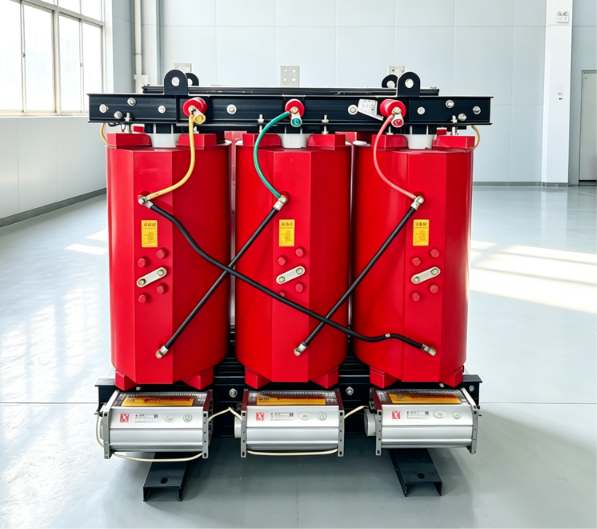

干式变压器

干式无油，防火防爆零渗漏

真空树脂浇注，绝缘强、抗开裂

全铜箔绕组，抗短路能力优异

低损耗低噪音，节能省电

防潮耐尘，恶劣工况适配性强

免油维护，运维成本大幅降低

内置温控保护，智能监测过热报警

支持定制规格，出具国际认证

Oil-free dry design, fire & explosion proof, zero leakage risk。

Vacuum epoxy casting, superior insulation & anti-cracking performance

Full copper foil winding, excellent short-circuit resistance

Low power loss & low noise, energy-saving & cost-effective

Moisture & dust resistant, adaptable to harsh working conditions

No oil maintenance required, greatly cut operation cost

Built-in temperature controller with overheat alarm & protection

Customizable specifications with international certification available

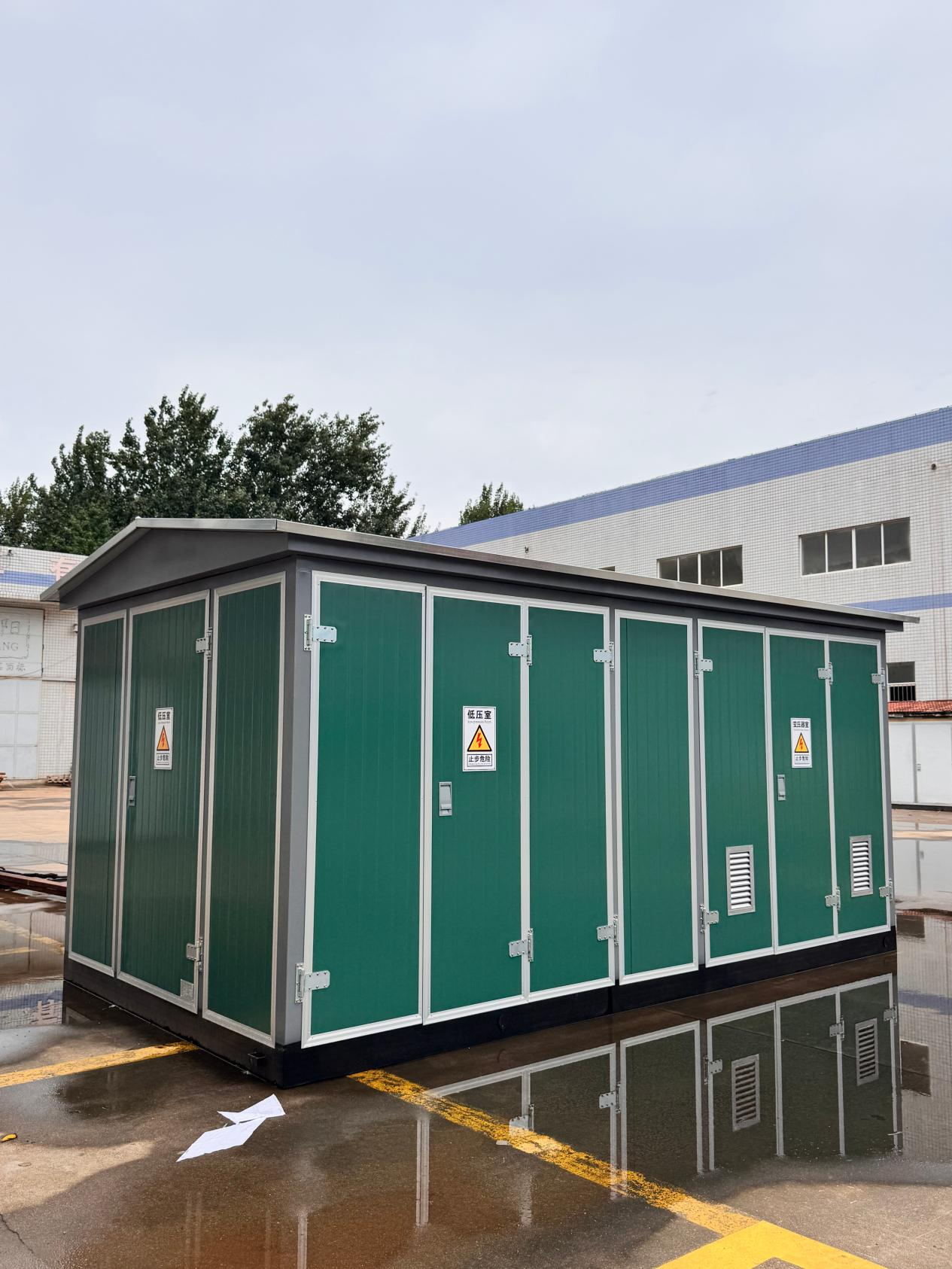

YBW式高压低压预装式变电站

YBW高低压预装式变电站为一体化户外箱变，整体防腐、双层隔热、智能自动散热；三腔独立带安全联锁，防护性强。无需土建、吊装即用，支持多种供电方式，适配油浸/干式变压器，配置灵活、免维护，广泛用于电网、光伏、厂区及市政配电。

YBW high & low voltage prefabricated substation is an integrated outdoor box substation with full anti-corrosion, double-layer heat insulation and intelligent automatic cooling. Adopting three-compartment independent layout with safety interlock, it features high safety

新能源充电桩

本款充电桩具备过充、防雷、漏电、过温、短路等全维度安全防护，安全可靠。电压范围200~1000V，兼容全国标车型；模块化结构支持功率定制、单/双桩可选，即插即用、占地小易运维。全自动智能充电，高防护等级适配户外工况，适用于停车场、商业场站、高速、公交站等快充场景。

This  charging pile has full safety protection against overcharge, lightning, leakage, overheating, short circuit, etc. It covers 200~1000V voltage range, compatible with all GB standard vehicles. Modular design supports customized power, single/dual pile, plug-and-play, small footprint and easy maintenance. Fully automatic intelligent charging with high outdoor protection grade, ideal for fast charging in parking lots, commercial stations, highways and bus stations.

高低压成套开关设备

一、高低压成套开关设备Complete High & Low Voltage Switchgear（成品成套，装配完整可直接送电）

高压铠装成套开关柜

High Voltage Metal-Clad Complete Switchgear

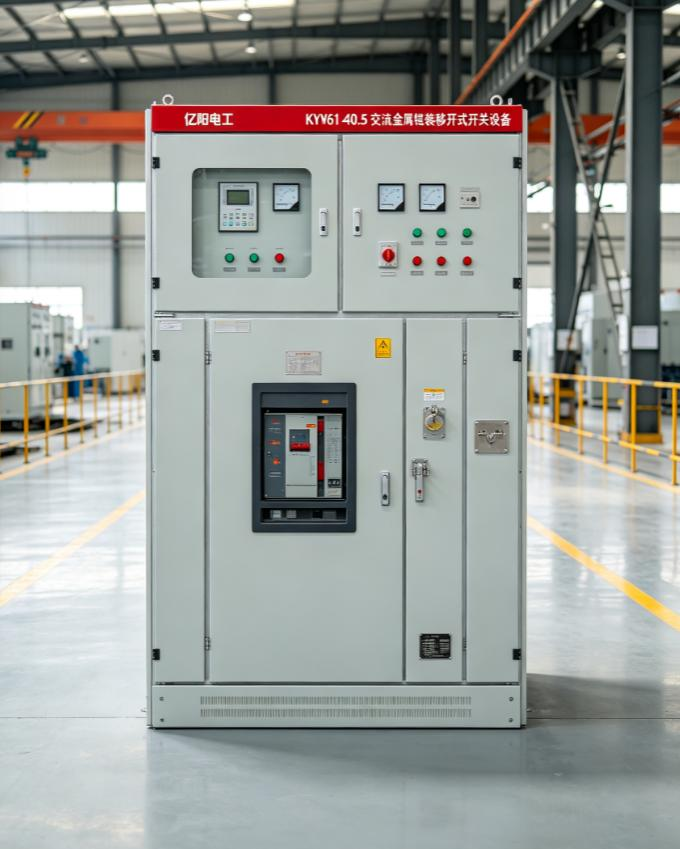

KYN61-40.5交流金属铠装移开式开关柜为35kV/50Hz户内成套配电设备，适用于电厂、变电站及工矿企业电能接收、分配，具备电路控制、保护与监测功能。设备配备可靠五防联锁杜绝误操作，全金属二次线槽防护更安全，采用空气绝缘设计、电气性能优异；人性化操作界面，柜体防护等级IP4X（手车室开启IP2X），外观简约大气，运行安全稳定。

KYN61-40.5 AC metal-clad drawout switchgear is a 35kV/50Hz indoor power distribution device, used for power receiving, distribution, circuit control, protection and monitoring in power plants, substations and industrial enterprises. Equipped with reliable five-prevention interlock to avoid misoperation, it adopts all-metal secondary wire slot and air insulation structure for excellent electrical performance and high safety. With humanized operation interface, the cabinet reaches IP4X protection grade (IP2X when handcart compartment open), featuring elegant appearance and stable operation.

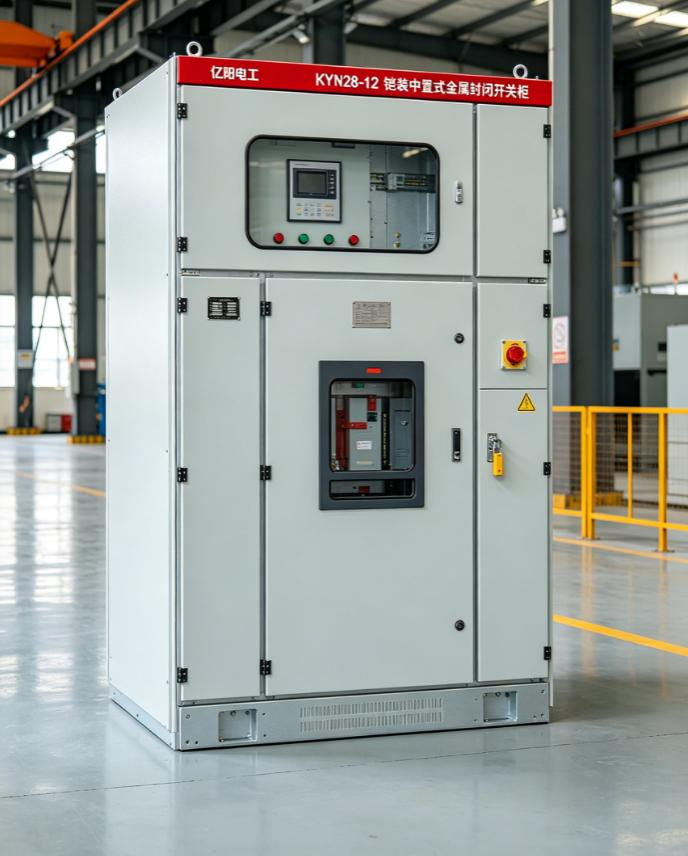

KYN28A-12铠装中置式金属封闭开关柜

KYN28A-12 Metal-Clad Midddle-Mountde Metal-Enclosed Switchgear

KYN28A-12铠装中置式金属封闭开关柜为12kV/50Hz户内配电设备，适用于电厂、变电站及工矿企业，用于电能接收、分配，实现电路控制、保护与监测。设备配置可靠五防联锁防误操作，高压室二次线槽全金属防护，操作安全；可选配多种真空断路器、接触器，支持电动底盘配置适配配网自动化，人性化操作界面，柜体防护等级IP4X、隔室IP2X，外观简洁规整，性能稳定。KYN28A-12 metal-clad middle-mounted enclosed switchgear is a 12kV/50Hz indoor power distribution device, applied in power plants, substations and industrial enterprises for power receiving, distribution, circuit control, protection and monitoring. It is equipped with reliable five-prevention interlock and all-metal protected secondary wire slot for safety. Various vacuum circuit breakers and contactors are optional, and electric chassis is available for distribution network automation. With humanized interface, the cabinet reaches IP4X enclosure protection (IP2X for compartments), featuring neat appearance and stable performance.

二、低压成套配电柜Complete Low Voltage Switchgear

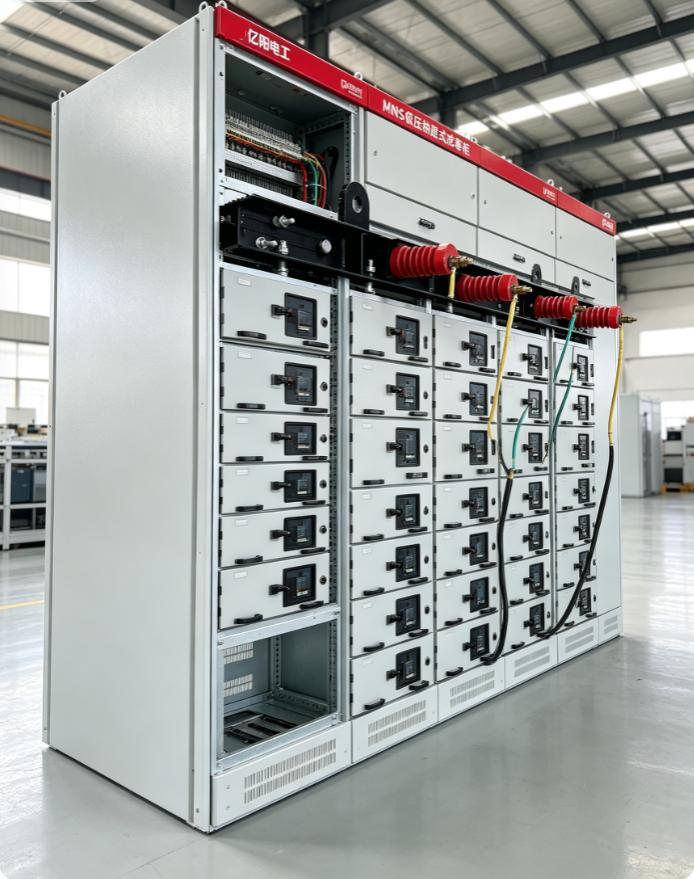

MNS/GCK/GCS 低压抽屉式成套柜、SLVA 标准化定制抽出式成套开关设备

MNS低压抽出式开关柜采用25模数C型钢骨架组装，精度高、结构牢固、组装灵活。适用于380V、50/60Hz三相交流系统，专为电力配电(PC)与电机控制(MCC)设计，广泛用于电站、石化、冶金、轻工等行业。柜体分为母线室、设备室、电缆室四大独立隔室，抽屉具备五位定位、单元可互换；配备门体联锁、母线自动遮挡防护，杜绝带电误操作，分区钢板隔离互不干扰，柜内母线布局规范，电缆安装便捷，运行安全稳定。

MNS low-voltage withdrawable switchgear adopts 25-module C-profile frame with high precision, sturdy structure and flexible assembly. Designed for 380V, 50/60Hz three-phase AC system for power distribution (PC) and motor control (MCC), it is widely used in power stations, petrochemical, metallurgy and textile industries. The cabinet is divided into four independent compartments. The drawer has 5 working positions with interchangeable functional units. Equipped with door interlock and automatic busbar shielding curtain to prevent live-line misoperation, it adopts steel plate partition for zero mutual interference, with standard busbar layout and easy cable installation, ensuring safe and stable operation.

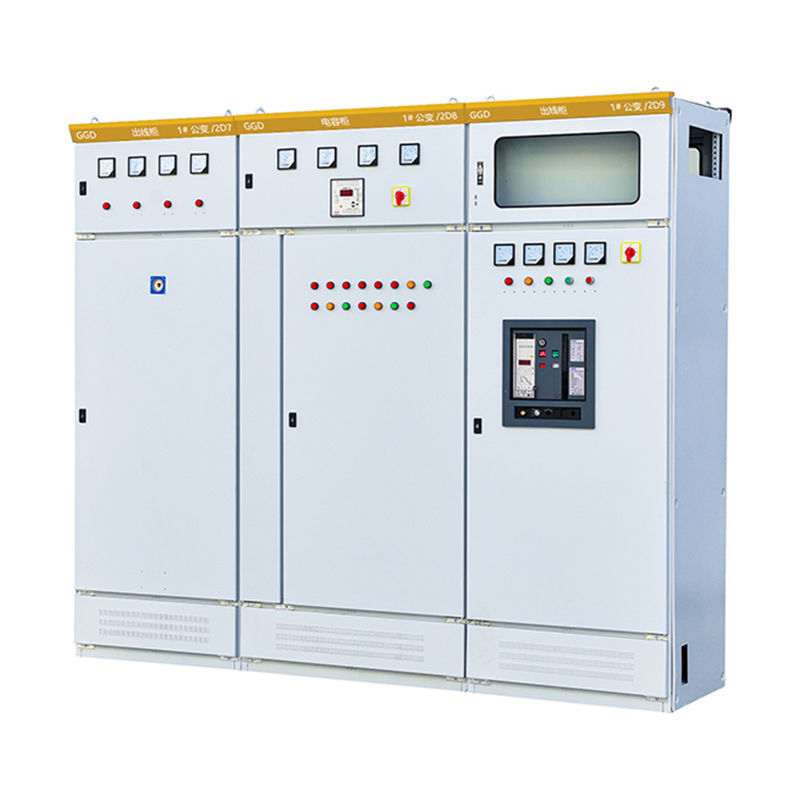

GGD 固定式低压成套开关柜

GGD低压固定式开关柜适用于50Hz、380V、最大3150A配电系统，用于工矿、电厂、变电站的动力、照明电能分配与控制。柜体采用8MF冷弯型钢拼装，通用性强；顶部配置高阻燃PPO积木式母线夹，抗冲击电流大、耐高温，产品分断能力高、动热稳定性优异，符合国标行业标准，适用性广、运行可靠。GGD low-voltage fixed switch cabinet is applied to 50Hz, 380V power distribution system up to 3150A, for power & lighting power distribution and control in power plants, substations and industrial enterprises. It adopts 8MF cold-bent steel frame for high universality. The top-mounted flame-retardant PPO busbar clamp features high current resistance and temperature resistance. With high breaking capacity and excellent dynamic & thermal stability, it complies with national standards, featuring wide applicability and reliable operation.

高低压空柜体外壳

 High & Low Voltage Empty Switch Cabinet

本系列高低压钣金空柜体为无元器件裸柜，适配高压KYN61-40.5、KYN28-12及低压MNS/GCK/GCS/GGD等主流型号，方便客户自主选配电气元件，降低成套采购成本。柜体采用加厚冷轧钢板经激光切割、数控折弯、静电喷塑工艺制成，结构标准、防腐防锈；预留联锁、导轨、散热及安装结构，防护等级、尺寸、开孔均可非标定制，广泛适配高低压配电、新能源、工矿、工程改造等成套装配场景。

This series of high & low voltage empty cabinet enclosures are bare sheet metal cabinets without electrical components, compatible with mainstream models including KYN61-40.5, KYN28-12, MNS, GCK, GCS and GGD. Customers can freely match electrical components to reduce system cost. Made of thickened cold-rolled steel via laser cutting, CNC bending and electrostatic spraying, the cabinets feature anti-corrosion performance and standard structure. Reserved interlock, guide rail, heat dissipation and mounting structures are available, with customizable protection grade, size and openings, ideal for power distribution, new energy, industrial and engineering renovation assembly projects.

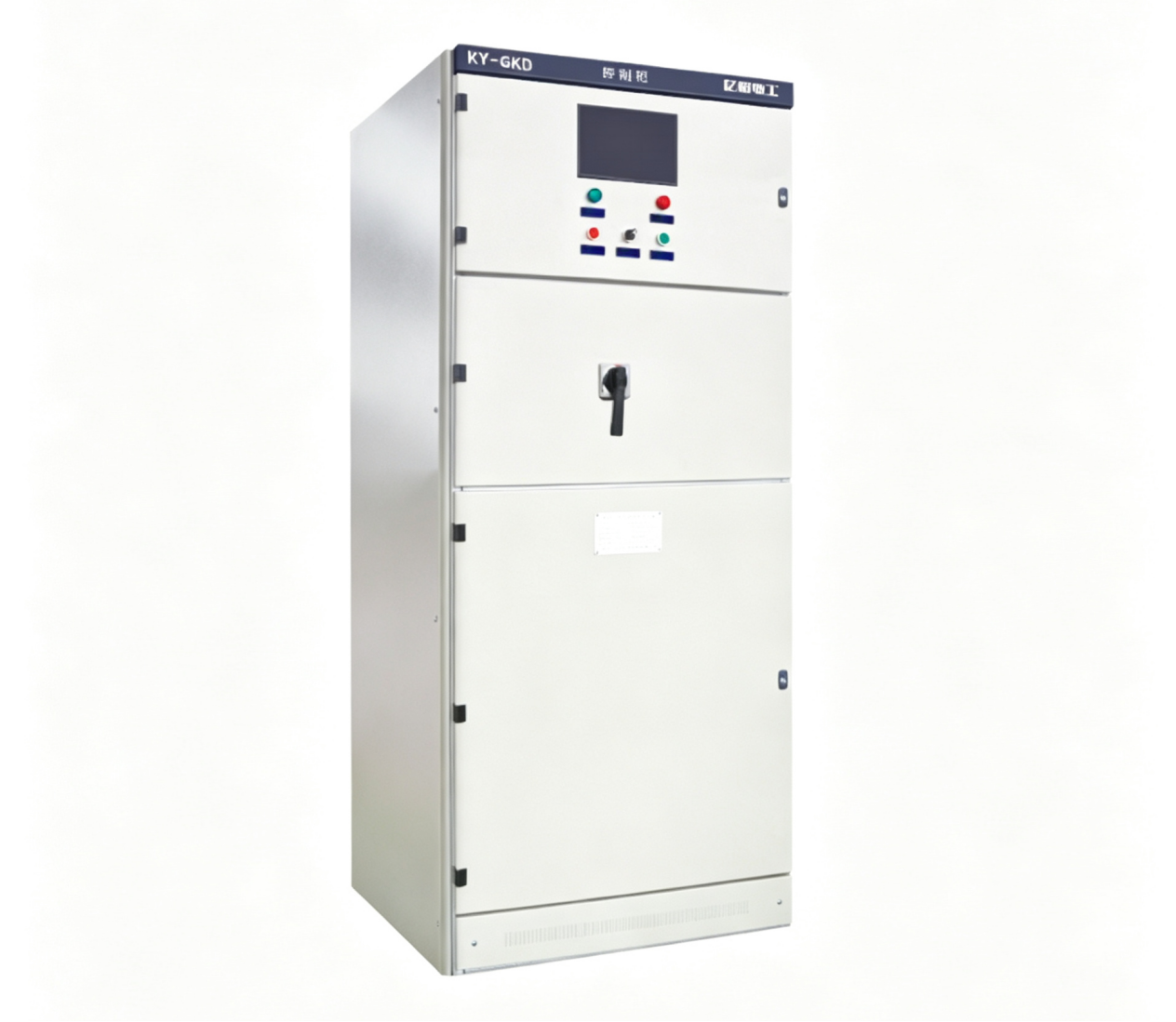

KY-GKD/KY-GKG 矿用高低压开关柜

 KY-GKD/KY-GKG General-Purpose Mining Switchgear

KY系列为矿用一般型开关柜（KY标识），采用金属封闭手车式结构，标配真空断路器。KY-GKD适用于380V、50/60Hz工矿场景，用于配电与电机控制；KY-GKG专为无瓦斯非煤矿井下设计，适配6KV/10KV、最大1250A供电系统，支持不接地/消弧线圈接地电网的电能接收、测量、控制与保护。设备拥有20种标准一次线路方案，可定制实现进线、馈电、设备控制、电压补偿等功能，适配矿山、石化、冶金等恶劣工况。

KY series are general-purpose mining switchgears marked with KY, adopting metal-enclosed trolley structure and equipped with vacuum circuit breaker. KY-GKD is used for 380V, 50/60Hz industrial systems for power distribution and motor control. KY-GKG is designed for gas-free non-coal mine underground, applicable to 6KV/10KV systems up to 1250A for power receiving, measurement, control and protection on ungrounded or arc suppression coil grounded networks. With 20 standard primary circuit schemes, it can be customized for incoming, feeder, motor/transformer control and capacitance compensation, suitable for mines, petrochemical and metallurgical industries.
